Hardware and Sketches
.jpg)

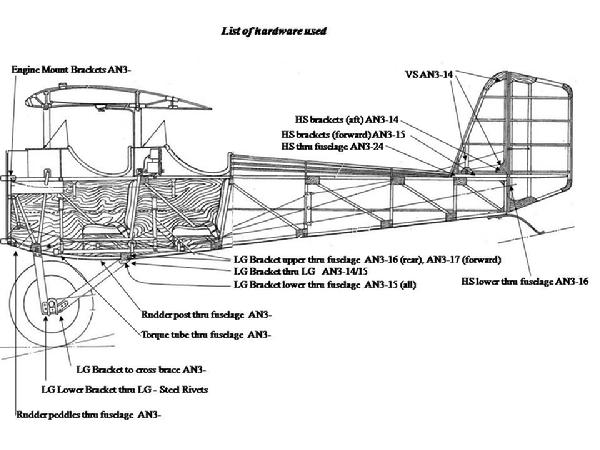

Here is a listing of the hardware I am using, as I remember to log it in...

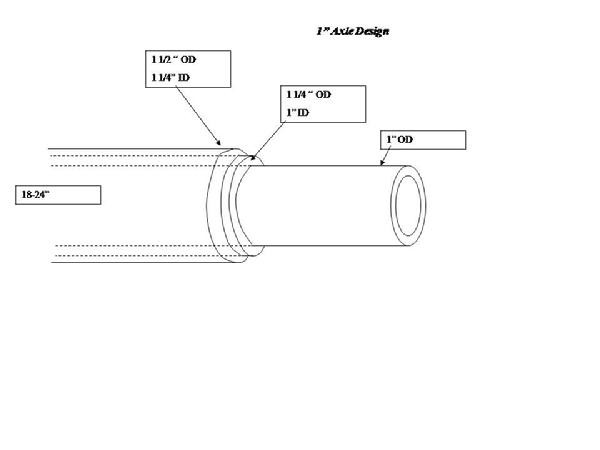

A sketch of the 1" axle design and sizes. I am also having the ends machined to accept a bolt for tightening the Harley wheels and bushings.
Hardware used
Landing Gear:Turnbuckles - AN130-16SCable - 1-19 SS, 1/8"Cable Shackles - AN115-21
Control sticks to bellcrank:Turnbuckles - AN130-16S (two on the bellcrank)Cable - 7-19 SS, 1/8"Cable Shackles - AN115-21 (forward; AN115-32 (aft, for the double cables)2" Pullies
Bellcrank to control surfaces:Turnbuckles - AN130-8SCable - 7-19 SS, 3/32"Cable Shackles - AN115-21 (AN115-32 at bellcrank for the double cables)
Tail surface wires:Turnbuckles - AN130-8SCable - 7-19 SS, 3/32"Cable Shackles - AN115-21
Wings:Not there yet!
Landing Gear:Turnbuckles - AN130-16SCable - 1-19 SS, 1/8"Cable Shackles - AN115-21
Control sticks to bellcrank:Turnbuckles - AN130-16S (two on the bellcrank)Cable - 7-19 SS, 1/8"Cable Shackles - AN115-21 (forward; AN115-32 (aft, for the double cables)2" Pullies
Bellcrank to control surfaces:Turnbuckles - AN130-8SCable - 7-19 SS, 3/32"Cable Shackles - AN115-21 (AN115-32 at bellcrank for the double cables)
Tail surface wires:Turnbuckles - AN130-8SCable - 7-19 SS, 3/32"Cable Shackles - AN115-21
Wings:Not there yet!
